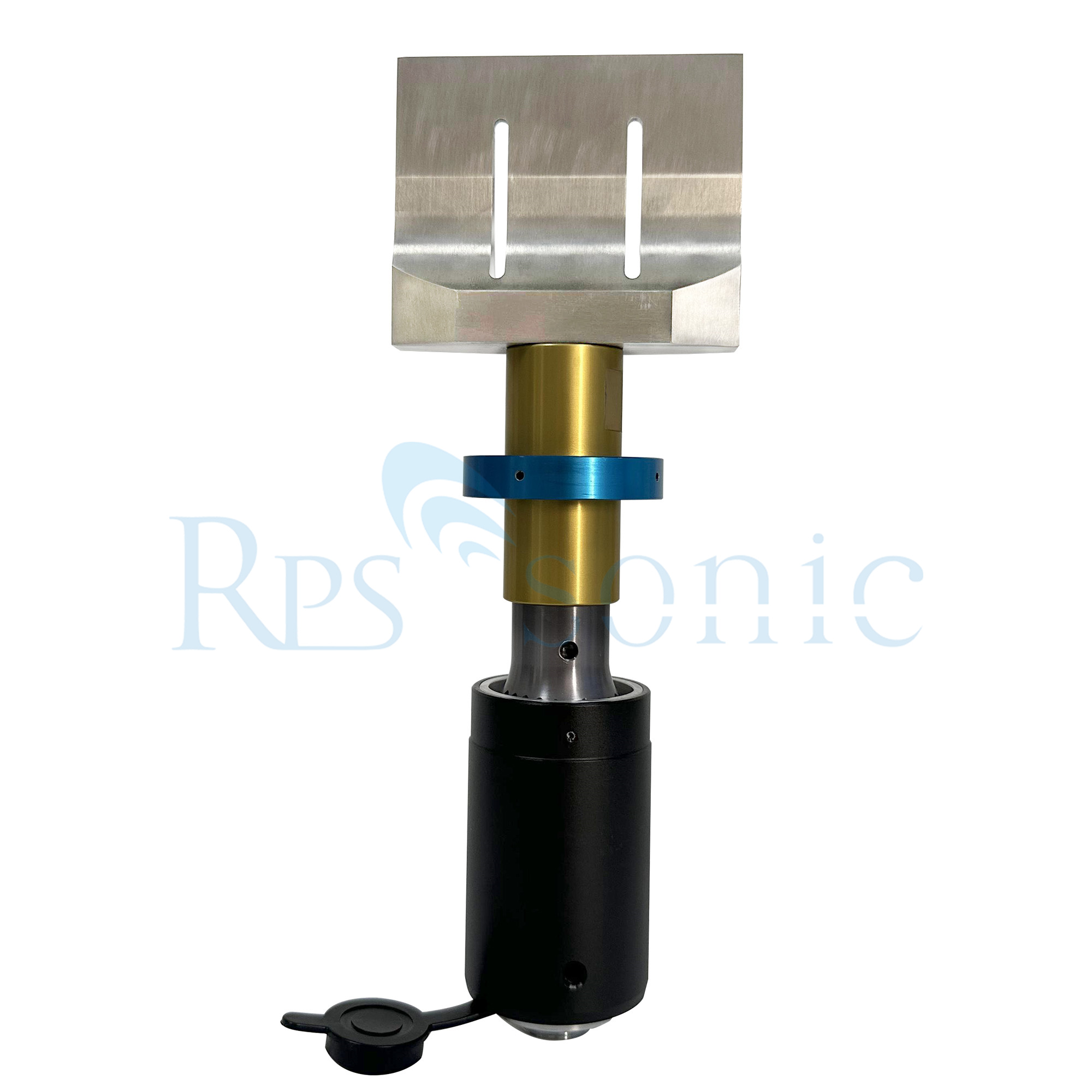

82.5mm 40Khz Ultrasonic cutting system for rubber cutting

 40Khz  Ultrasonic cutting machine For Tire rubber cutting rubber manufacturer

Parameter

Description

Traditional rubber cutting technology needs to lubricate the rubber during cutting, and there are phenomena such as slow cutting speed, large cuts, large amounts of dust, uneven cutting surfaces, and sticky knives. Many companies are still using traditional manual methods for cutting, which not only cannot satisfy productivity but also brings hidden dangers to life safety.
For rubber products, cold cutting is more suitable than hot cutting. Cold cutting has the advantages of less heat generation, less thermal deformation, less dust during the cutting process, and no aging and cracking of the section due to excessive temperature. Ultrasonic rubber cutting technology belongs to cold cutting, which uses ultrasonic energy to locally heat and melt the cut rubber to achieve the purpose of cutting materials.

The principle of traditional cutting
Traditional cutting uses a knife with a sharp edge to concentrate a very large pressure on the edge and press the material to be cut. When the pressure exceeds the shear strength of the material being cut, the molecular bonds of the material are pulled apart to achieve cutting. Because the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, it is not effective for soft and elastic cutting, and it is more difficult for viscous materials.

The principle of ultrasonic rubber cutting
Ultrasonic cutting uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. Ultrasonic rubber cutter can easily cut resin, rubber, plastic, fabric and various overlapping composite materials and food.

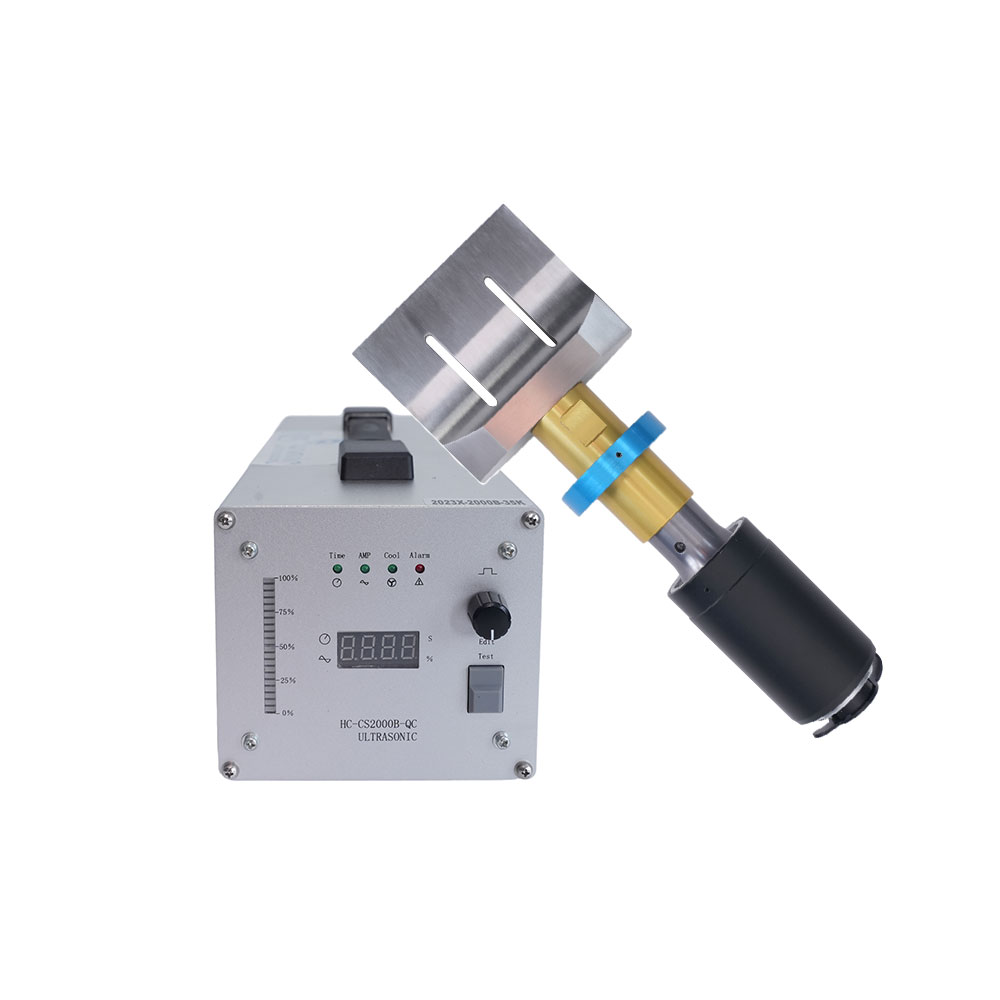

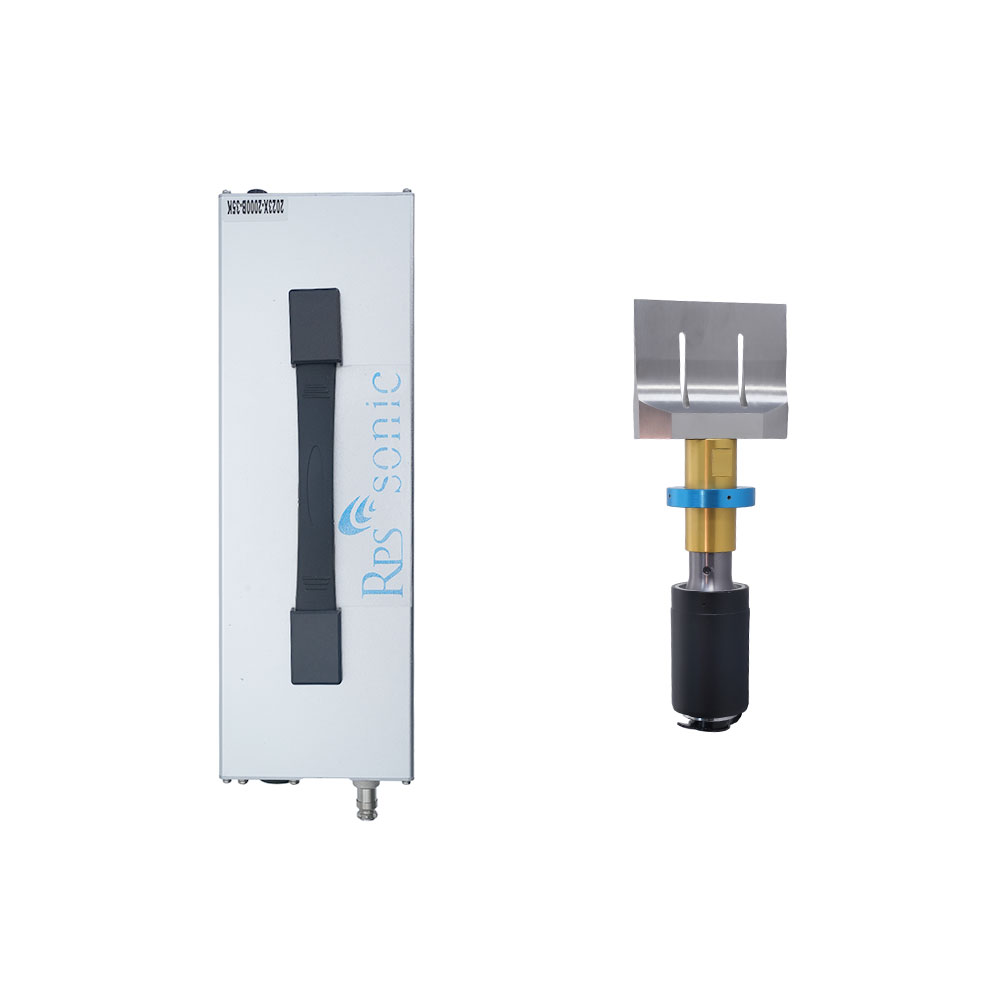

The principle of ultrasonic rubber cutting knife is to convert 50/60Hz current into 20, 30 or 40kHz electric energy through an ultrasonic generator (also called ultrasonic power supply). The converted high-frequency electric energy is again converted into mechanical vibration of the same frequency through the transducer, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator devices that can change the amplitude. The ultrasonic rubber cutting knife vibrates along its length with an amplitude of 10-70μm, repeating 40,000 times (40 kHz) per second (the vibration of the blade is microscopic, and it is generally difficult to see with the naked eye). The cutting knife then transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the rubber by activating the molecular energy of the rubber and opening the molecular chain.

Features

Very high cutting accuracy-cutting is smooth, clear and clean.
Repeated cutting — The blade output is monitored by a closed loop circuit to provide consistent cutting results.
Lower temperature-the rubber has almost no heat.
Dryness — No lubrication is required. The ultrasonic rubber cutter vibrates 20,000 to 40,000 times per second (depending on the application), so the cutter head can pass through the rubber smoothly.
Low energy consumption-the cutter head only vibrates when cutting, and the power required in a typical thin material application is about 100 watts or less.
Easy to integrate into automation-the ultrasonic rubber cutting process is very simple and can be upgraded to existing mechanical structures or installed in new equipment.

Application

It is usually used in tire, cable foreskin materials, hoses, gaskets and chemical-resistant equipment lining and other rubber products for cutting.

Using method

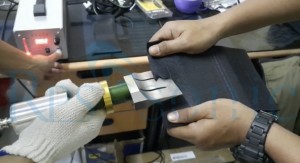

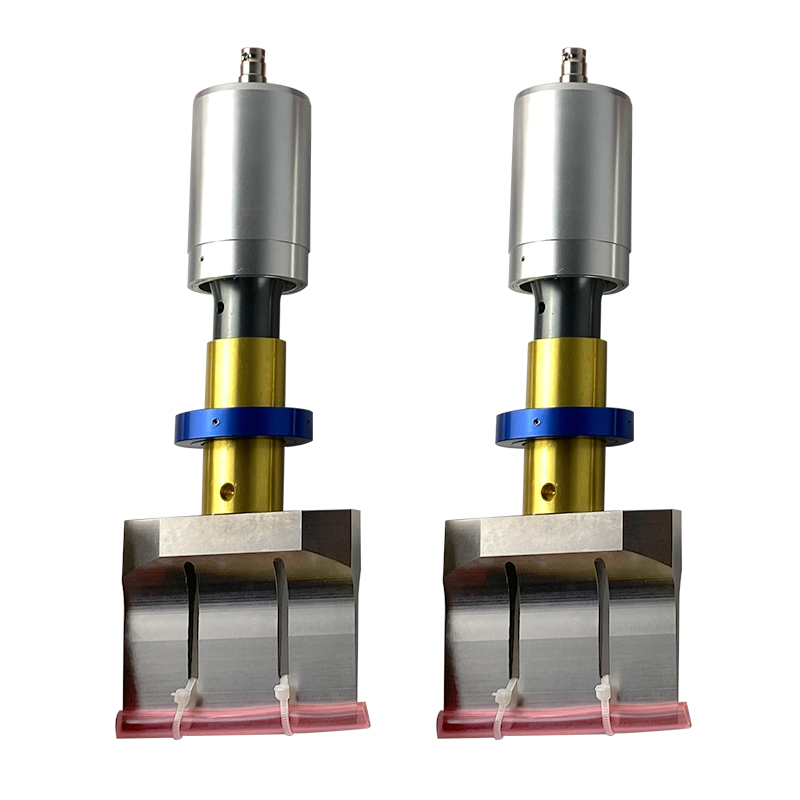

40kHz cutting knife in the upper tread cutting (which can be cross-cutting and longitudinal mode). The cutting blade width is 82.5mm and it also can be costimized by your needs.

• Previous:40KhzUltrasonic cutting blade For Tire rubber cutting rubber manufacturer
• Next:Factory Supply China Ultrasonic Welding Machine and Cutting System Machine for Plastic Fabric PP Bag

1.Are there different blade designs available for ultrasonic cutting knives?

Yes, ultrasonic cutting knives come with various blade designs to suit different applications. Some common blade shapes include straight blades, curved blades, serrated blades, and custom-designed blades for specific cutting requirements.

2.Can an ultrasonic cutting knife be used for automated or robotic applications?

Yes, ultrasonic cutting knives can be integrated into automated or robotic systems for precision cutting in industrial settings. They can be controlled and programmed to follow specific cutting paths, making them suitable for high-speed production lines.

3.Is an ultrasonic cutting knife safe to use?

Ultrasonic cutting knives are generally safe to use when operated correctly. However, precautions should be taken to prevent accidental contact with the vibrating blade, and appropriate safety measures, such as guarding and training, should be implemented to ensure operator safety.

4.How do I choose the right ultrasonic cutting knife for my application?

When selecting an ultrasonic cutting knife, consider factors such as the type and thickness of the material to be cut, the desired cutting precision, the required cutting speed, and any specific features or accessories needed for your application. Consulting with the manufacturer or supplier can help in choosing the most suitable knife.

5.Can an ultrasonic cutting knife be used for non-industrial applications?

Yes, ultrasonic cutting knives have applications beyond industrial settings. They can be used in crafts, hobbies, and DIY projects, as well as in research and development laboratories for cutting small samples or delicate materials.
