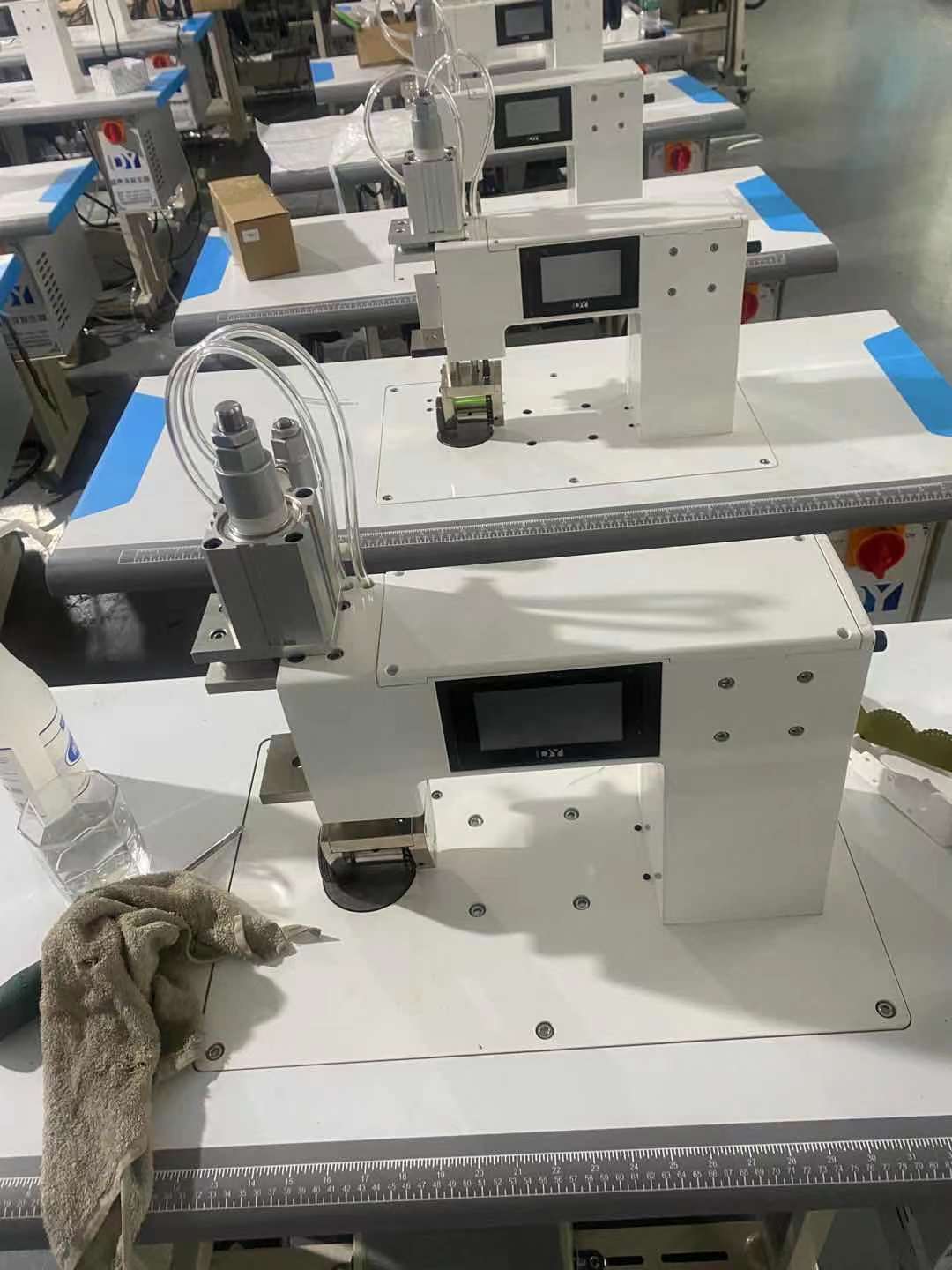

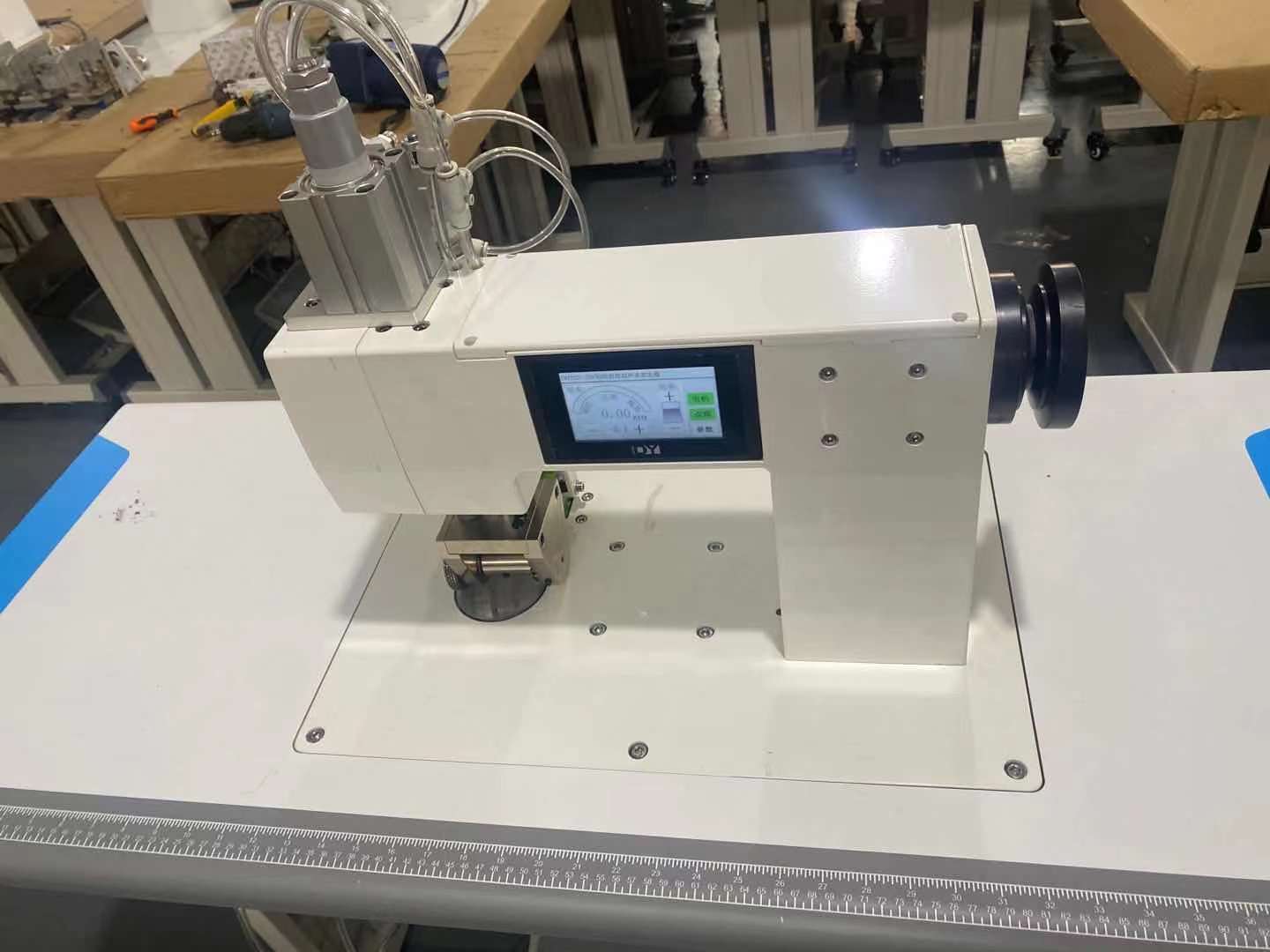

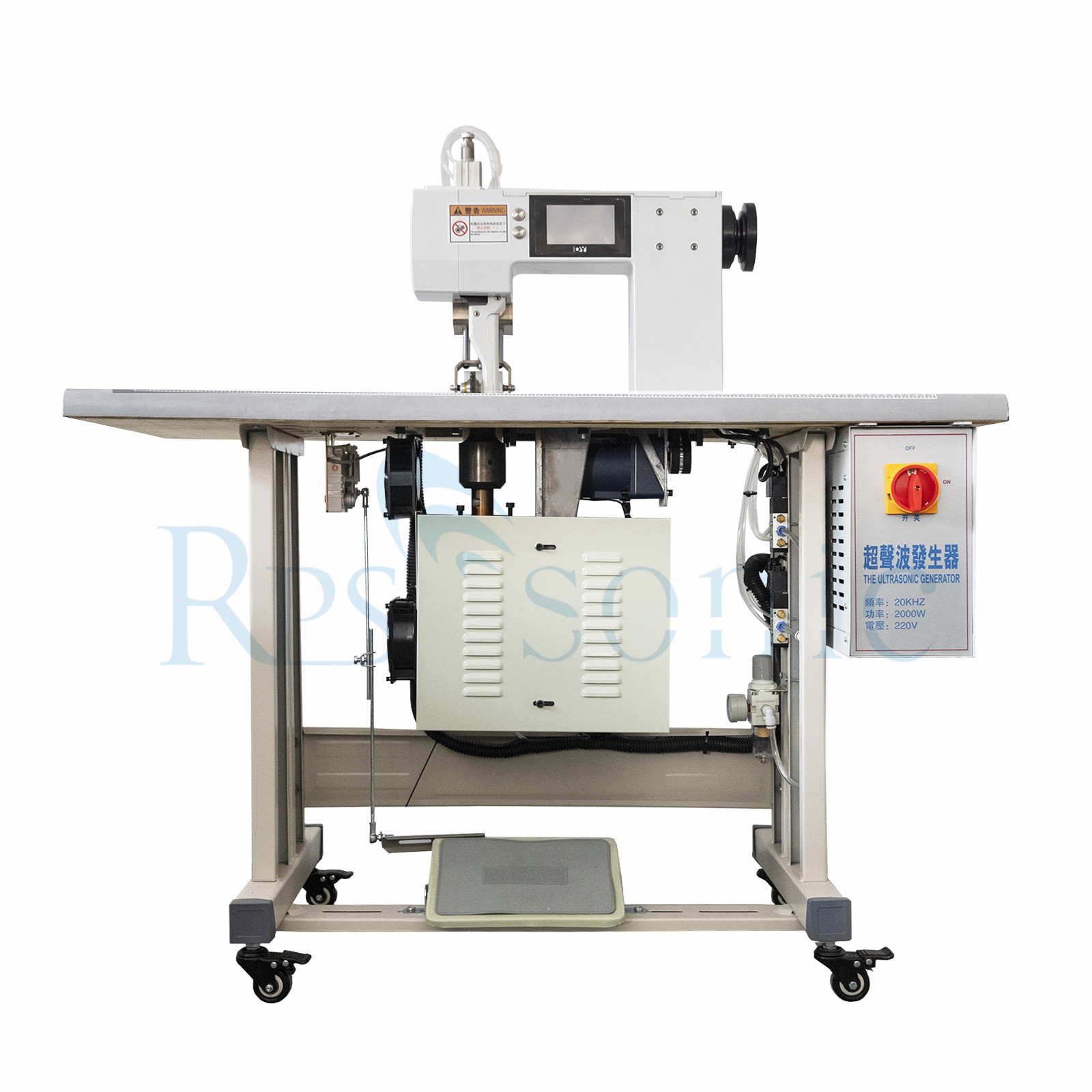

20Khz 1500w white High speed Ultrasonic lace machine for nonwoven cutting and sealing

15Khz 1500w High speed Ultrasonic lace machine with digital generator

Parameter

Description

The high-frequency oscillation is used to transmit sound waves from the welding head to the welding surface of the work object, and the molecules of the work object are instantly rubbed to reach the melting point of the plastic, thereby completing the rapid dissolution of solid materials and completing the welding.

The operating speed of this model is four times that of ordinary sewing machines, and the operation is simple. Suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, pillowcases, duvet covers, tents, disposable surgical gowns, non-woven shopping bags, non-woven fabrics and other supplies.

Applicable materials: chemical fiber cloth, artificial leather, non-woven fabric, spray cotton, thermoplastic film, chemical plastic sheet, etc.

Configuration

Intelligent ultrasonic generator;
20KHz ultrasonic transducer device
Single/dual motor speed control system
Manual (or optional pneumatic) pattern lifting system;

Function

Trimming: Single-sided straight or curved cutting, and edge melting treatment, so that the edge is smooth, not rough, and without burrs;
Stitching: Two or more layers of fabrics are stitched together, wireless needleless instead of sewing, and good welding strength;
Hole-cutting: Cut out holes of various patterns, and do edge-melting treatment;
Stripping: Single or multiple strips of the material can be opened and cut at the same time, and the edges should be melted without burrs;
Forming: Cutting, stitching, and embossing at the same time, so that the product is formed at one time.

Features

There are various patterns of patterns, and designs can be provided according to customer needs;
Super power output, with two levels of adjustable power, suitable for welding and cutting requirements of different materials and thicknesses;
Built-in computer chip and multi-channel ultrasonic protection system to ensure the safe and stable operation of the host;
The application of automatic frequency tracking system and ultrasonic soft start technology makes this machine powerful.

Application

(1) Clothes lace, protective clothing, woven bags, (2) bed covers, (3) pillow cases, (4) car covers, (5) tents, (6) packing belts, (7) backpacks, travel belts, Hand straps, (8) curtains, (9) raincoats, windbreakers, snow coats, (10) toys, (11) gloves, (12) tablecloths, (13) chair covers, (14) duvet covers, (15) masks, (16) Hair accessories, (17) Accessories, (18) Umbrellas, (19) Lampshades, (20) Filters and other products

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
