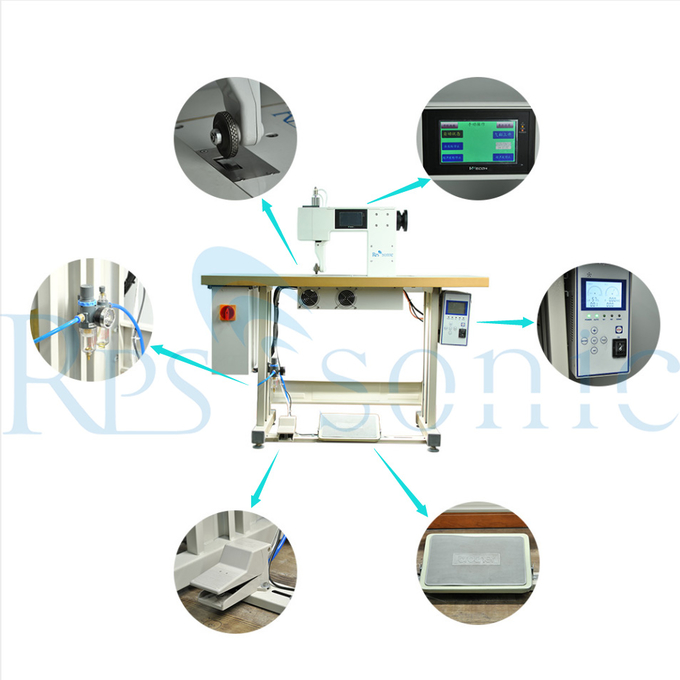

20Khz 1000w Textile Ultrasonic sewing Machine with Continuous Welding Force Monitoring

20Khz Textile Ultrasonic sewing Machine with Continuous Welding Force Monitoring

Parameter

Description

Ultrasonic sewing machine, also known as ultrasonic lace machine, ultrasonic embossing machine, is an efficient sewing and embossing equipment. Mainly used for seaming, welding, fusion cutting, embossing, etc. of synthetic fiber fabrics. The processed products have good water tightness, high production efficiency, no needle and thread accessories, smooth fusion cut surface, no burrs, and good hand feeling. Ultrasonic stitching machines are widely used in industries such as clothing, toys, food, environmentally friendly non-woven bags, masks (cup masks, flat masks, three-dimensional masks, etc.)

working principle
The high-frequency oscillation is used to transmit sound waves from the welding head to the welding surface of the work object, and the molecules of the work object are instantly rubbed to reach the melting point of the plastic, thereby completing the rapid dissolution of the solid material and completing the welding.
Applicable materials
Chemical synthetic fiber fabrics, or containing chemical fiber blended patch, chemical film (containing more than 30% chemical fiber), can be processed into the required products, such as Nylon cloth, needle thread patch, non-woven fabric, T/R cloth, special Duolong patch (Polyester cloth), multi-layer cloth, and various laminated surface-coated cloth film papers are all applicable.

Compared with the traditional needle-type wired suture, the ultrasonic suture machine has the following advantages
1. The use of ultrasonic stitching eliminates the need for needles and threads, saves the trouble of frequent needle and thread changes, does not have the disconnected joints of traditional stitches, and can also perform neat partial cutting and sealing of textiles. Stitching also plays a decorative role. It has strong adhesion, can achieve waterproof effect, clear embossing, more three-dimensional relief effect on the surface, fast working speed, good product effect and high-end beauty; quality is guaranteed.
2. The use of Lijin ultrasonic and special steel wheel processing, the sealing edge will not crack, will not damage the edge of the cloth, and there will be no burrs or curling.
3. No preheating is required during manufacturing, and continuous operation is possible.
4. The operation is simple, and it is not much different from the traditional sewing machine operation method, which can be operated by ordinary sewing workers.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.

Application

Clothing lace, bed covers, pillow cases, car covers, tents, packing belts, backpacks, travel belts, hand belts, curtains, raincoats, windbreakers, snow coats, toys, gloves, tablecloths, chair covers, duvet covers, masks, hair Decorations, accessories, umbrellas, lampshades, etc.

Q1.What kind material of the horn?

A. Titanium alloy, we also customized aluminum hom for customer before.

Q2.What’s the time of delivery?

A. For Conventional hom, 3 days, for customized hom 7 work days.

Q3.Does ultrasonic extraction also require the addition of a chemical catalyst?

A. No . but some time need Mechanical stiring.

Q4.Can the device work continously?

A. Yes ,it can work 24hours continously.

Q5.What’s the Processing capacity of one set ultrasonic extraction equipment?

A. Different hor different Processing capacity, for 2000W Nine section whip horm can dealing 2L~10Lmin.

Q6.What’s the warranty of your sonicator equipment?

A. All equipment one year warranty.
